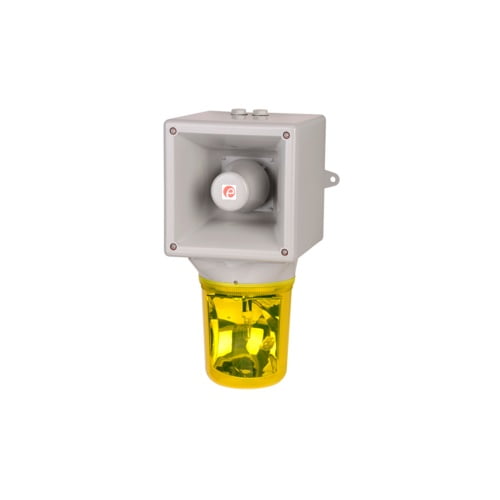

E2S AB121RTH Alarm Sounder & Rotating Beacon

The E2S AB121RTH combines a heavy duty 126dB(A) E2S Alarm Sounder with a powerful 40W halogen Rotating Beacon.

The E2S AB121RTH combines a heavy duty 126dB(A) E2S Alarm Sounder with a powerful 40W halogen Rotating Beacon. This E2S Beacon and Sounder can be operated from the same power source or controlled individually.

Features
Automatic synchronisation on multi-sounder system
Continuously rated
Stainless steel fixings
Unit can be mounted using external lugs or internal BESA compatible fixing positions
Duplicate cable terminations (in & out for daisy-chain installations)
Tropicalisation available on request
Available with custom tone configurations and frequencies
‘Programmable’ version available:
– 45 alarm tones
– 4 remotely selectable stages
– Any tone can be assigned to any stage
– User configurable continuous frequency tone.

Maximum output

[112dB(A) @ 10ft/3m +/-3dB]

,

[115dB(A) @ 10ft/3m +/-3dB]

,

Default power level: 121dB(A) @ 1 m +/-3dB

,

High power level: 124dB(A) @ 1 m +/-3dB

Nominal output

[109dB(A) @ 10ft/3m +/-3dB]

,

[112dB(A) @ 10ft/3m +/-3dB]

,

Default power level: 118dB(A) @ 1m +/-3dB

,

High power level: 121dB(A) @ 1m +/-3dB

No. of tones

64 (UKOOA / PFEER compliant)

No. of stages

4

Volume control

Full range to 0dB(A)

Effective range

Default power level: 221m/726ft @ 1KHz

,

High power level: 323m/1062ft @ 1KHz

In rush

815mA within 4.0ms @ 24Vdc

Stage switching

Negative (common positive)

Light Source

Halogen Bulb G6,35 / GY6,35.

Light output

max 40W

Rotation

180 RPM (+/-30RPM).

Peak Candela

1,204 cd

Candela

325 cd* (effective intensity)

Lens colours

Amber, Blue, Clear, Green, Red & Yellow

Drive life

> 5,000 hrs

Ingress protection

IP65

Enclosure

High impact UL94 V0 & 5VA FR ABS/PC

Lens colour filter

Field replaceable UV stable PC

Terminals

0.5 – 2.5mm2 (20-14 AWG)

Line monitoring

Diode polarized for use in supervised circuits

Operating temperature

-40 to +66°C [-40° to +151°F]

Storage temperature

-40 to +70°C [-40° to +158°F]

Relative Humidity

95% at 20°C [68°F]

Weight DC

2.30kg / 5.06Ibs

Weight AC

2.90kg / 6.39Ibs
